Overview of Oracle GoldenGate Checkpoints

Checkpoints store the current read and write positions of a process to disk for recovery purposes. Checkpoints ensure that data changes that are marked for synchronization actually are captured by Extract and applied to the target by Replicat, and they prevent redundant processing. They provide fault tolerance by preventing the loss of data should the system, the network, or an Oracle GoldenGate process need to be restarted. For complex synchronization configurations, checkpoints enable multiple Extract or Replicat processes to read from the same set of trails.

VirtualNuggets

Checkpoints work with inter-process acknowledgments to prevent messages from being lost in the network. Oracle GoldenGate has a proprietary guaranteed-message delivery technology.

Extract creates checkpoints for its positions in the data source and in the trail. Because Extract only captures committed transactions, it keeps track of the operations in all open transactions, in the event that any of them are committed. This requires Extract to record a checkpoint where it is currently reading in a transaction log, plus the position of the start of the oldest open transaction, which can be in the current or any preceding log.

To control the amount of transaction log that must be re-processed after an outage in an Oracle database, Extract also persists the current state and data of processing to disk at specific intervals, including the state and data (if any) of long-running transactions. If Extract stops after one of these intervals, it can recover from a position within the previous interval or at the last checkpoint, instead of having to return to the log position where the oldest open long-running transaction first appeared.

Replicat creates checkpoints for its position in the trail. Replicat stores these checkpoints in a table, known as the checkpoint table, in the target database and also in a checkpoint file on disk. The checkpoint table is stored with a user-specified name and location. The checkpoint file is stored in the dirchk sub-directory of the Oracle GoldenGate directory.

At the completion of each transaction, Replicat writes information about that transaction to a row in the checkpoint table, linking the transaction with a unique position in a specific trail file. Replicat also writes a checkpoint to the checkpoint file when it completes a transaction. At regular intervals, Replicat also writes its current read position to the checkpoint file. These positions are typically not at a transaction boundary, but at some point within a transaction. The interval length is controlled by the checkpointssecs parameter.

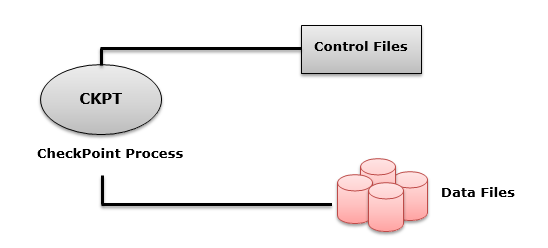

Oracle Goldengate checkpoints

Because the checkpoint table is part of the database, and benefits from the database recovery system, it provides a more efficient recovery point for Replicat. The last checkpoint in the checkpoint file may not be the most recent transaction boundary. It could be the middle of a transaction not yet applied by Replicat or an earlier transaction that was already applied. The checkpoint table ensures that Replicat starts at the correct transaction boundary, so that each transaction is applied only once. The information in the checkpoint table can be used for recovery in some cases, but is primarily used for purposes, such as for the INFO commands in GGSCI.

Regular backups of the Oracle GoldenGate environment, including the trails, should match your database backup, recovery, and retention policies. Restoring the database (and with it the checkpoint table) to an earlier period of time causes Replicat to reposition to an earlier checkpoint that matches that time. If the required trail files for this time period are already aged off the system, they must be restored from backup.

Checkpoints are not required for non-continuous types of configurations, such as a batch load or initial load. If there is a failure, these processes can be started again from the original start point.
